LINEAR DRAIN SHOWER ENTRY KIT
No. RR6ELDK
Rapid Recess kits are designed to provide the necessary subfloor depth to easily install a true, zero-entry curbless shower. System is compatible with all wood construction scenarios including standard lumber, I-joists, and trusses with ¾" plywood subfloor. Brackets are made of 16 gage galvanized steel.
Installed above the joists without the use of a 2×4 frame or compromising the structural integrity of the joists
Can be used with different types, widths, and orientation of floor joists
No framing ledger boards or cross-bracing needed
Floor height within the lowered area is recessed by 11/16" inch
Kits available for point or linear drains
Complies fully with ICC standards and codes

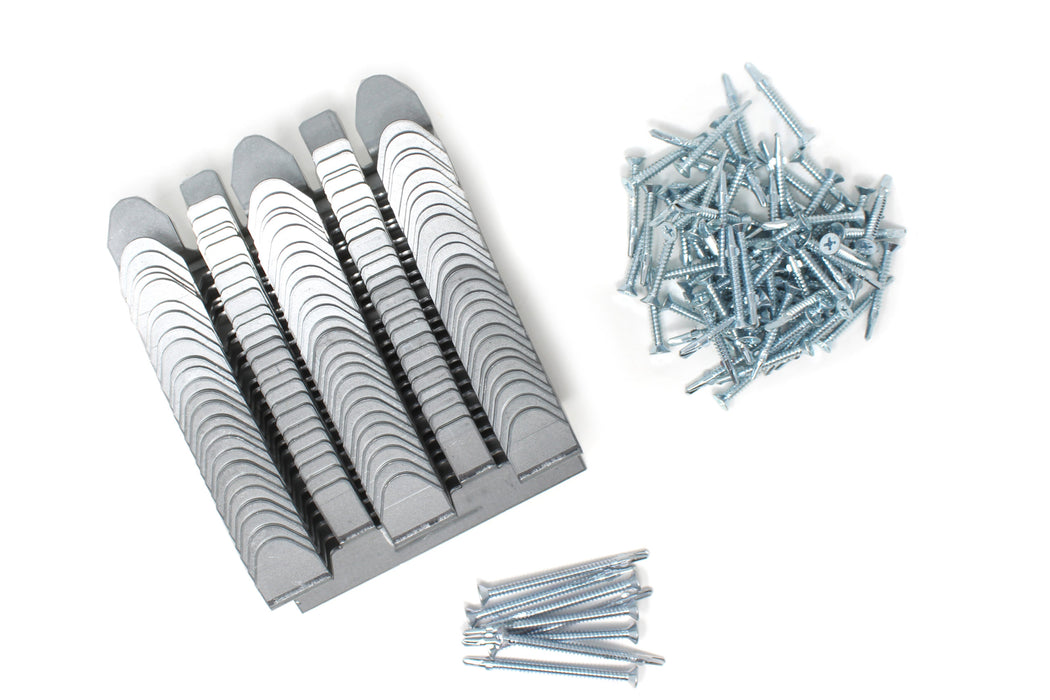

Z Bracket "“ 5" long side bracket used for wall to recess and main floor to recess transitions (Qty "“ 8)
#10, 2-3/4" wood to metal self-drilling screws with wings (Qty "“ 40)
#10, 1-5/8" wood to metal self-drilling screws with wings (Qty "“ 160)
The RR6ELDK kit for linear drains at shower entry fit an area of 25 square feet or less. Joists may be running parallel or perpendicular to the shower entry. Kit includes:
